Patch Canvas

The Trilobite Patch Canvas may is the interactive editing environment for Trilobite patches. This section describes the basic editing features available for patch manipulation, including navigation features, menus, patch layout, and selection modes.

Topics on this page include:

Background Popup Menu
Navigation Features
Adding Modules
Module Popup Menu
Port Popup Menu
Module Parameter Dialog
Making Connections
Selections
Dragging Selections
Undo/Redo Stack

Background Popup Menu

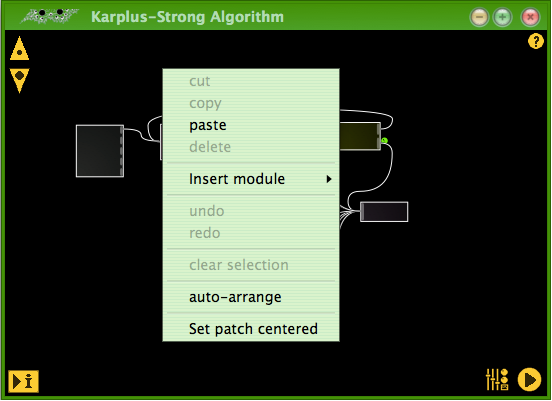

A mouse right-click anywhere in the background of the Patch Edit Canvas will display the main editor popup menu shown above.

Options include:

cut	Selecting this option will place all currently selected Modules and their attached connections to each other in the Trilobite Copy/Paste Clipboard, and then remove these from the Patch. This option is only enabled if one or more Modules are selected. This operation may be reversed using the undo option in this menu. Keyboard shortcut: Cntl-X
copy	Selecting this option will place all currently selected Modules and their attached connections to each other in the Trilobite Copy/Paste Clipboard. This option is only enabled if one or more Modules are selected. This operation may be reversed using the undo option in this menu. Keyboard shortcut: Cntl-C
paste	Selecting this option will do the following: If Modules are selected, they and their attached connections are removed. If a selection was removed, the content of the Trilobite Copy/Paste Clipboard is overlaid in the same position. If no selection was removed, the content of the Trilobite Copy/Paste Clipboard is overlaid somewhere in the upper-left portion of the Patch Canvas. The Modules and connections just overlaid are set to a selected state (see Selections section below). This operation may be reversed using the undo option in this menu. This option is only enabled if the Trilobite Copy/Paste Clipboard contains a patch fragment from an earlier cut or copy operation. Note that it is possible to copy and paste content between two separate open patch editor windows. Keyboard shortcut: Cntl-V
delete	Selecting this option will remove any currently selected Modules and their attached connections from the Patch, leaving nothing selected. This operation may be reversed using the undo option in this menu.
Insert module	Selecting this option will open the Module selection submenu.
undo	Selecting this option will reverse the last edit operation which may be undone and pop that operation from the undo to the redo stack. See the Undo/Redo Stack section below for more information. If there is no action to be undone, this option is disabled. Keyboard shortcut: Cntl-Z
redo	Selecting this option will restore the last operation that was reversed using the undo operation, so long as intervening edit operations did not occur. See the Undo/Redo Stack section below for more information. If there is no option to be redone, this option is disabled. Keyboard shortcut: Cntl-R
clear selection	Selecting this option will turn off selected state for all Modules and connections in a patch. See the Selections section below for more information. Only enabled if one or more Modules are selected. Keyboard shortcut: Esc

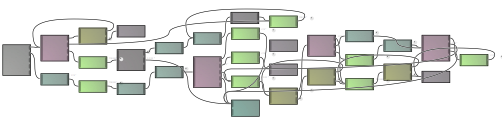

auto-arrange	Selecting this option will rearrange the current patch for you in a “breadth first” fashion based on connections. In other words, the Output Module will be placed on the left side of the Patch Canvas, with Modules connected to its input ports situated in the next row, and their connected Modules situated in the next row, and so on recursively. Auto-arranged patches will have something like the following appearance: This operation may be reversed using the undo option in this menu.
Set patch centered	Selecting this option will reset the zoom level and center focus position so that the entire patch is visible on the Patch Canvas. This is a useful option in the event that the patch is zoomed so far out as to be no longer visible.

Navigation Features

The visual editor allows patch viewing at any level of detail. This enables examination of very small details in very large patches.

Zoom in to see more detail, or to zoom out to see the larger patch layout use the Zoom Buttons.

To scroll the patch in any direction at the current zoom level, simply left click and drag on the Patch Canvas background to pull to a new viewpoint, much like moving a piece of paper across a tabletop with your fingertip.

In the event that you get lost navigating and can no longer find the patch, use the Set patch centered menu option discussed above.

Adding Modules

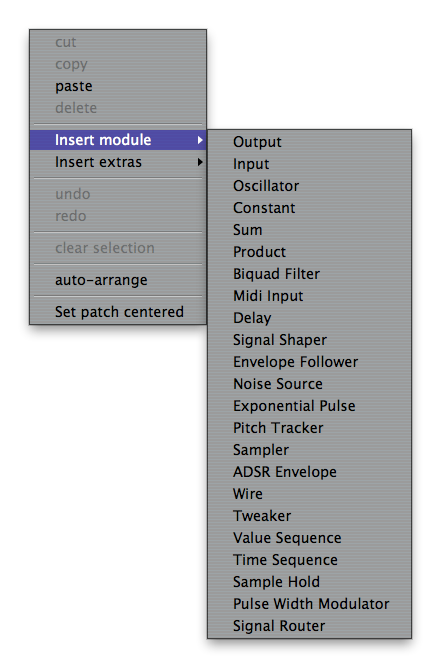

New Modules are added to the Patch Canvas using the Insert Module menu option discussed above. Selecting that option will expand the following submenu:

Select any of the listed module types to insert a new instance of that Module type at the mouse button down position. Individual Module types are described in detail starting at the Modules Types page.

There is a strict limit of only one Output Module in a patch, so selecting the Output menu option will do nothing if an Output Module is already present.

This operation may be reversed using the undo menu option.

Module Popup Menu

This menu is shown when you right click on any Module within the Patch Canvas:

Click the Add Input option to extrude an additional Module Input Port. Some Module types will add more than one Input Port when you do this because of grouping conventions for the signal processing algorithm they implement.

For Module types which do not support adding Input Ports, the Add Input option will be disabled.

This operation may be reversed using the undo menu option.

Port Popup Menu

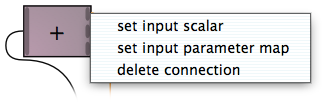

This menu is shown when you right click on an Input Port of any Module:

Options include:

set input scalar	Select this option to change the Input Port Scalar described in the Patch Basics page. The canvas will present a text entry box into which you type a decimal number: When you hit return, the displayed scalar value will be updated to reflect your change, and the new scalar value will be applied to the input signal if the Module uses it. Use the escape key to dismis the text entry box without committing a change. This operation may be reversed using the undo menu option.

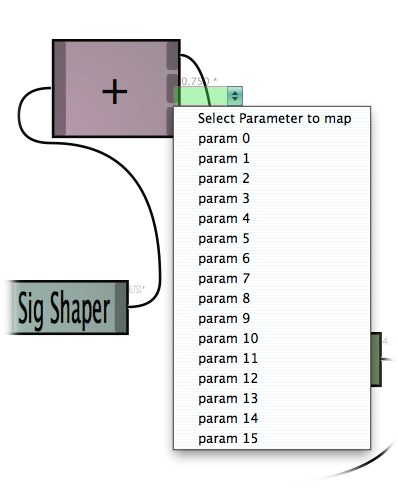

set input parameter map	Select this option to change the Parameter Scalar mapped to this Input Port, as described in the Patch Basics page. The canvas will present a combo box from which you may select a preferred Parameter number: After selection, the displayed parameter map value will be updated to reflect your change, and the new mapped Parameter Scalar will be applied to the input signal if the Module uses it. This operation may be reversed using the undo menu option.
delete connection	Note that when you right click on a Module Input Port, the connection into that port is painted in the visual editor selection color. Selecting this menu option will delete the connection. This operation may be reversed using the undo menu option.

Module Parameter Dialog

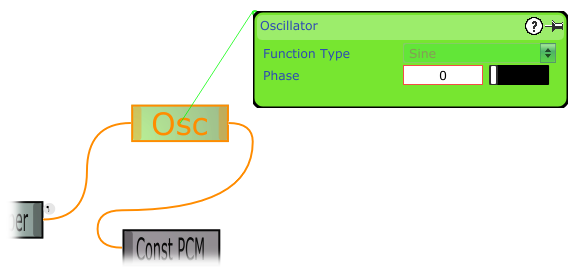

Every Module as a set of “static” parameters (parameters which remain fixed during standard patch usage outside the Visual Editor) which may be displayed in a special popup non-modal dialog. To access this dialog for a Module, double-click on on the Module and see the following:

By clicking and dragging on the Dialog title bar, you may drag it anywhere within the Patch Canvas. A mouse click anywhere outside the Dialog will cause the Dialog to become invisible until the Module is double-clicked again. The Push Pin Button will prevent this, as described below.

Features of the Module Parameter Dialog include:

Dialog Title	This title indicates the Module Type for this module. In this case, the Module is an Oscillator.
Context Help Button	A click on this button will launch your default web browser and navigate to the appropriate Module Type page in this user guide. This button may be hidden using the Help Menu.
Push Pin Button	Click this button to prevent the Dialog from becoming invisible when it loses focus. When clicked, the button appearance changes to: Another click on the button will immediately make the Dialog invisible.
Parameters Area	The area of the Dialog below the title bar is devoted to Module static parameters. These parameters will vary for every Module Type.
Association Line	The green line between the Osc Module and the Parameter Dialog pictured above shows which Module the Dialog belongs to. This will help alleviate confusion for complex Patches.

As changes are made to the parameters in the Dialog, the results will be immediately audible if the Patch is active.

Module Parameter Dialogs are not affected by Patch Canvas navigation, even if their target Module is navigated off screen.

Unfortunately, changes to Module static parameters using this Dialog may not be undone.

Making Connections

Making a connection between two modules establishes signal flow from the Output Port of the source module to the Input Port of the destination module. To make such a connection, left click on Output Port of the source module and drag your mouse cursor to the Input Port of the destination module. As you are dragging, you will see a straight dotted line from the Output Port to the immediate mouse position:

Drag the mouse to hover over the Input Port you wish to connect to, and release the mouse button to complete the connection:

Note that if any connection was already made to the destination port when you perform this operation, that connection will be eliminated.

To see a brief description of Module I/O Ports, let the mouse cursor hover over the Port in question. A text description will appear after a brief pause, and then gradually fade out:

This operation may be reversed using the undo menu option.

Selections

Edit operations on patches are often predicated on being able to select which modules you wish to change. Trilobite offers the following modes and nuances of mode selection within a patch:

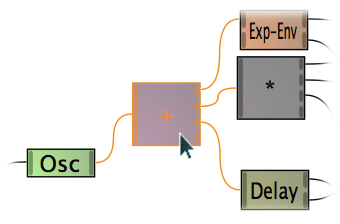

Click Selection	To select a single Module, left click on it with the mouse: Note that when a module is selected its color is changed to the selection color, as are all of its connections. Any prior selection will be cancelled by this operation, leaving only the module just clicked in a selected state.
Shift Drag Selection	By holding down the shift key, then clicking and dragging, a selection rect may be be used to select multiple modules: Release mouse button to complete the selection.

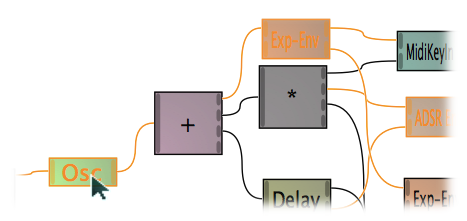

Shift Click Selection	By holding down the shift key while left-clicking on Modules, multiple Modules may be selected:

Dragging Selections

To move a single module around on the Canvas, left click on the module (which selects it) and drag it to the desired position, then release. The module will move with your mouse cursor and its connections will remain intact.

To move multiple Modules around at the same time, first select the modules as described above, then left click on any of the selected modules and drag the entire selection to the desired position, then release.

This operation may be reversed using the undo menu option.

Undo/Redo Stack

Trilobite maintains a patch change transaction stack ten layers deep. In other words, using the undo menu option documented above, the last ten patch changes may be reversed to restore the patch to an earlier state. Conversely, these changes may be restored using the redo menu option...unless a new patch change has occurred. Any new patch change after using the undo option will delete any possible redo states.

Note that saving the patch will empty the patch change transaction stack, thereby disabling the undo and redo menu options until changes occur.
