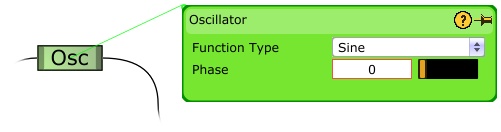

Oscillator Module

The oscillator module creates an oscillating waveform of the indicated function type at the frequency specified by its input Control Signal. Available function types are sinusoidal, square, triangle, and sawtooth.

For a key to understanding the tables on this page, see the Module Types page.

Adding Input Ports

Adding input ports is not enabled for this module.

Static Parameters

#	Title	Type	Description
0	Function Type	Choice	Has the options Sine Square Triangle Sawtooth
1	Phase	Floating-point	indicates the initial phase of the waveform as a ratio value. Range: [0, 1], LINEAR

Input Ports

#	Title	Description	Input Scalar Used	Parameter Scalar Used
0	Frequency Signal	The input signal to this port controls the module oscillation frequency in cycles per second (Hz)	YES	YES

Output Ports

#	Title	Description
0	Output Signal	The oscillating waveform. Range: [-1, 1]
