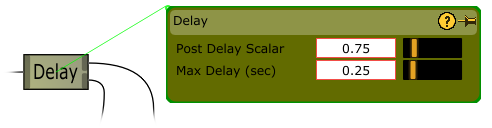

Delay Module




The Delay Module implements a single-tap delay which buffers an input signal and produces an amplitude-modulated version of the signal after a configurable and real-time scalable time duration.

For a key to understanding the tables on this page, see the Module Types page.

Adding Input Ports

Adding input ports is not enabled for this module.

Static Parameters

#

Title

Type

Description

0

Post Delay Scalar

Floating-point

The delayed input signal will be scaled by this value before being exported at the output port.

Range: [0.001, 0.99], LINEAR

1

Max Delay (sec)

Floating-point

Specifies the maximum duration of the delay line in seconds. Note that the actual real-time delay duration is this value multiplied by the input to Port 1.

Range: [0.0, 5.0], LOG

Input Ports

#

Title

Description

Input Scalar Used

Parameter Scalar Used

0

Input Signal

Signal which will be delayed.

NO

NO

1

Duration Ratio

Sets the real-time percentage of the maximum delay line to use for delay, effectively setting delay duration as (Max Delay) * (Duration Ratio) * Parameter. For use as a percentage, this signal is clamped to the range [0.0, 1.0] before the delay duration is calculated.

NO

YES

Output Ports

#

Title

Description

0

Output Signal

A delayed version of the Input Signal
