Delay Module

The Delay Module implements a single-tap delay which buffers an input signal and produces an amplitude-modulated version of the signal after a configurable and real-time scalable time duration.

For a key to understanding the tables on this page, see the Module Types page.

Adding Input Ports

Adding input ports is not enabled for this module.

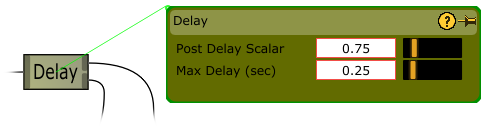

Static Parameters

#	Title	Type	Description
0	Post Delay Scalar	Floating-point	The delayed input signal will be scaled by this value before being exported at the output port. Range: [0.001, 0.99], LINEAR
1	Max Delay (sec)	Floating-point	Specifies the maximum duration of the delay line in seconds. Note that the actual real-time delay duration is this value multiplied by the input to Port 1. Range: [0.0, 5.0], LOG

Input Ports

#	Title	Description	Input Scalar Used	Parameter Scalar Used
0	Input Signal	Signal which will be delayed.	NO	NO
1	Duration Ratio	Sets the real-time percentage of the maximum delay line to use for delay, effectively setting delay duration as (Max Delay) * (Duration Ratio) * Parameter. For use as a percentage, this signal is clamped to the range [0.0, 1.0] before the delay duration is calculated.	NO	YES

Output Ports

#	Title	Description
0	Output Signal	A delayed version of the Input Signal
