Trilobite 0.9.3
User Guide


© Darwin Arts L.L.C., 2014

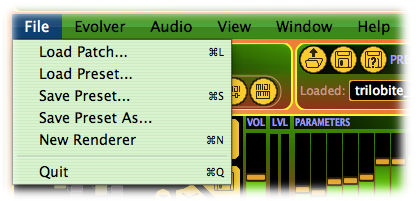

File Menu




The file menu follows application file menu conventions.

Options include:

Load Patch...

Invokes a file open dialog for selecting a patch file to be opened in a new Modular Synth Panel. Patch files generally end with the suffix “da_patch”.

Keyboard shortcut: Ctrl-L

Load Preset...

Invokes a file open dialog for selecting a preset file to be opened, replacing the current Preset selected in the Presets Panel.

Save Preset...

If the current Trilobite state was loaded from a Preset File using the Load Preset... option described above, then this menu option will automatically overwrite that file with all currently loaded engine state and display state. If current Trilobite state was not loaded from a file, then this menu option functions exactly as the Save Preset As... option described below.

Keyboard shortcut: Ctrl-S

Save Preset As...

This menu option will display a save file dialog, which may be used to save all current state to a specified Preset File with default suffix “*.da_preset”.

New Renderer

Creates an empty Modular Synth Panel.

Keyboard shortcut: Ctrl-N

Quit

This menu option terminates Trilobite.

Keyboard shortcut: Ctrl-Q
